FLEX "CA 12 230/CEE" Quick Charger (12V) 1 Stück

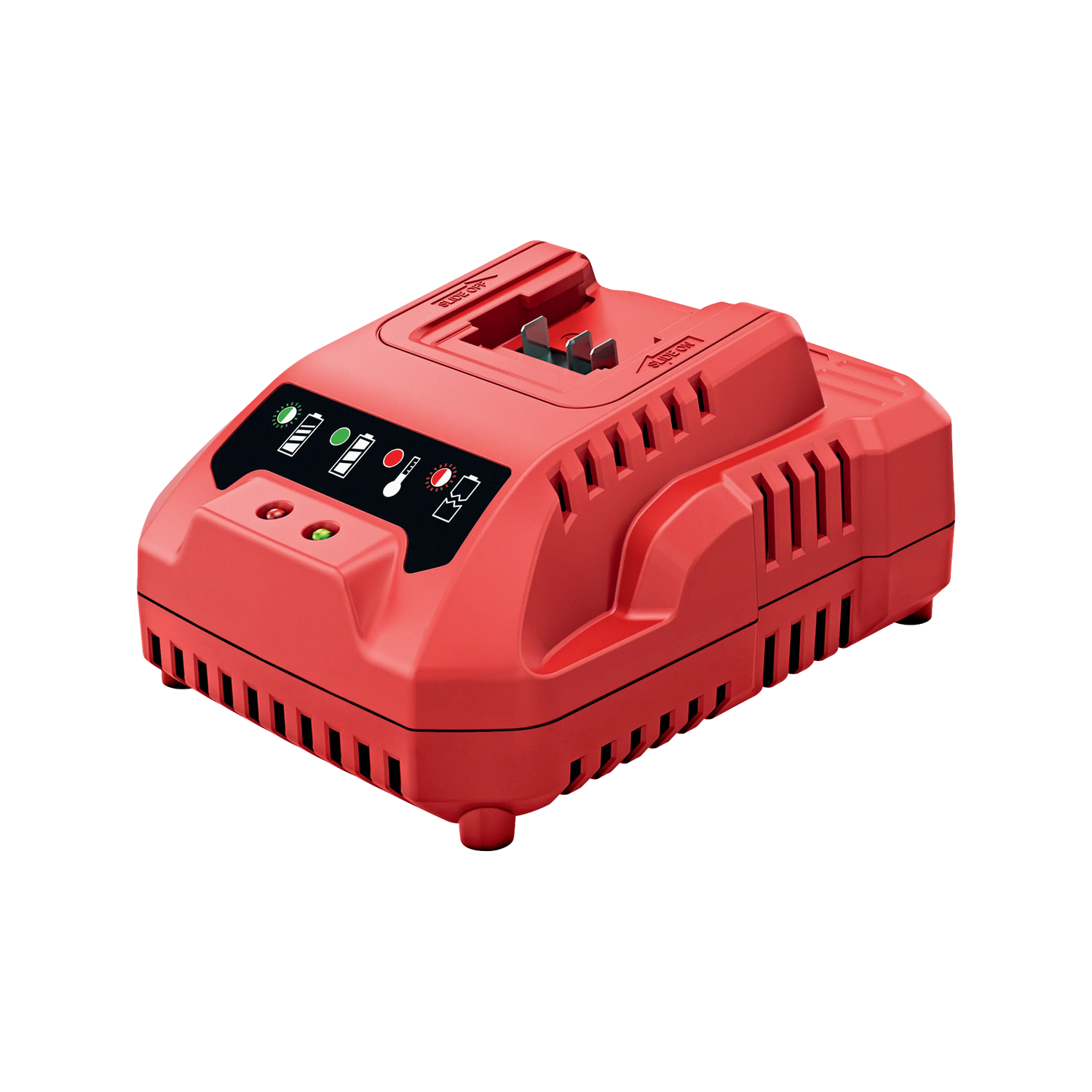

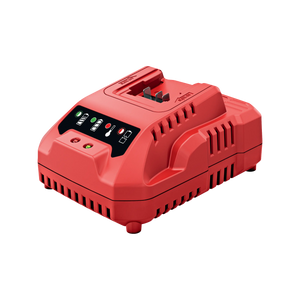

FLEX CA 12 230/CEE Fast Charger – The Dedicated 12V Charger for the FLEX PXE 80 System

What is the FLEX CA 12 230/CEE Fast Charger? The FLEX CA 12 230/CEE is a compact 12V fast charger with a 5A charging current, which fully charges the FLEX AP 12V battery pack in approximately 40 minutes (2.5 Ah) or 50 minutes (5.0 Ah) – featuring an LED charging indicator and optional wall mounting for stationary use.

In the FLEX 12V system centered around the PXE 80 12-EC, the charger is the quietest, but by no means the least important, link in the chain. No cordless polisher works without a reliably charged battery – and the FLEX CA 12 230/CEE Fast Charger ensures that the AP 12V battery pack is ready when it's needed. With a 5A charging current, a compact design, and the option for wall mounting, the CA 12 is designed for efficiency and everyday usability – not for superfluous features.

The CA 12 is deliberately tailored to the 12V FLEX ecosystem. It exclusively charges FLEX 12V battery packs, making it the consistent companion for anyone who specifically relies on the compact 12V system – whether in professional detailing with the PXE 80 12-EC or in craft use with other 12V FLEX machines. However, if you want to charge both 12V and 18V batteries, the CA 12/18 230/CEE offers the cross-system solution.

Weighing only 0.52 kg, the CA 12 is the lightest charger in the FLEX portfolio – handy enough for transport in a toolbox, compact enough for storage on a workshop shelf or permanent wall mounting above the detailing area. The combination of a small form factor, sufficient charging current, and reliable LED status indicator makes it the ideal first charger for the PXE 80 system – and the second, third charger in the workshop when multiple batteries are in parallel operation.

• 5A charging current for short charging times in the 12V system. With a charging current of 5A, the CA 12 fully charges the FLEX 2.5 Ah battery in about 40 minutes – equivalent to a break between two vehicles. The device charges the 5.0 Ah battery to 100% in approximately 50 minutes. This is not a record time, but it is absolutely sufficient for professional operation with one or two spare batteries in rotation. No waiting, no downtime.
• LED charging indicator for an immediate overview of battery status. The integrated LED indicator shows the battery's charge status at a glance – no display, no menu, no distraction. Charging in progress, charging complete, error: all readable in seconds. Especially in continuous operation, when several batteries are charged one after another, this direct status display saves time and provides planning certainty for the next use.
• Wall mounting for a stationary charging station in the detailing setup. The CA 12 has a hanging eyelet for wall mounting. This allows for a fixed charging station in the workshop or home garage – insert the battery, the device hangs on the wall, the cable is neatly arranged. For professional detailers who operate several FLEX 12V machines in parallel, a wall-mounted charging row with one or more CA 12s is the cleanest and most practical setup.

Practical Tip from Detailing1: In professional operation with the PXE 80 12-EC, we recommend two AP 12V battery packs in rotation plus the CA 12 as a permanent charging station. Battery A is working, Battery B is on the CA 12. The change takes 10 seconds, and a charging time of 40–50 minutes is exactly enough for one machine during typical detailing sessions while the other continues to work. This creates an uninterrupted workflow without expensive waiting times.

LED Indicator and 5A Charging Current – The Technology of the FLEX CA 12 230/CEE

The CA 12 230/CEE is a fast charger that focuses on the essentials: quick, safe charging of FLEX 12V battery packs. The 5A charging current clearly places it above simple standard chargers with 2–3A, without entering the segment of high-performance fast chargers that stress battery cells more with extreme charging currents.

5A is the sweet spot for everyday 12V use: fast enough to be ready in 40–50 minutes, gentle enough not to excessively burden the cycle life of lithium-ion cells. In professional continuous operation – where a battery is charged multiple times daily – this is a relevant consideration. A charger with 10A or more charges in 20 minutes, but costs charging cycles and increases heat generation in the battery. The CA 12 offers a balanced approach here that protects the battery while avoiding waiting times in daily use.

The LED charging indicator is deliberately kept simple: no display, no app connection, no charging curve visualization. What it shows – charging in progress or complete – is completely sufficient for daily operation. If you need more diagnostic data, you can find it on the CA 12/18 230/CEE with an extended LCD display and battery diagnostic function.

Typical FLEX protection functions are also integrated: overcharge protection, deep discharge protection, and overheating protection. This protects the AP 12V battery from the most common causes of damage in lithium-ion cells – a silent but important contribution to the longevity of the entire 12V system. In practice, this means: The CA 12 recognizes when the battery is full and automatically stops charging. No overcharging, no continuous application of charging voltage, no capacity loss due to incorrect charging practices.

The weight of 0.52 kg and the compact design are the direct result of this focused design. No superfluous casing, no heavy transformer weight – just what a 12V fast charger needs for professional use.

Charging times for the AP 12V battery – what 40 minutes mean in practical use

The CA 12's charging times are tailored to the available AP 12V battery packs from FLEX:

The 2.5 Ah battery charges from 0 to 100% in about 40 minutes. In typical detailing applications, this is roughly the time needed for a complete polishing protocol on a compact vehicle – enough time to work with one battery while the second fully charges.

The 5.0 Ah battery charges in about 50 minutes. With its higher capacity, it allows for longer uninterrupted work phases, which offers an advantage over the 2.5 Ah, especially for larger vehicles – SUVs, station wagons, vans. The 10 minutes extra charging time are well invested due to the noticeably longer run time.

For the P-Set 12-22 Q, which includes two 2.5 Ah batteries, the CA 12 is the suitable charger – one battery runs, the other charges, operation is virtually uninterrupted. Those who choose this set as the basis for their 12V detailing setup have the complete package with the CA 12 as an addition.

Important: The specified charging times apply at normal ambient temperatures (15–25°C). At very low temperatures (<5°C), the charging time will be extended, as lithium-ion cells absorb energy more slowly when cold. The CA 12 is equipped with protection against charging at extreme temperatures, which prevents damage to the battery cells from cold charging.

Wall mounting and stationary operation – the CA 12 as a fixed charging station

The hanging eyelet on the FLEX CA 12 230/CEE is a detail that initially seems insignificant – but in practice, it makes the difference between an organized and a chaotic workshop. The charger can be permanently attached to the wall: a hook, a screw, a fixed spot. The battery is inserted, the cable runs in defined paths, nothing lies on the floor.

Especially in professional detailing setups, where order and accessibility of tools directly influence work efficiency, this option is valuable. A charging station with two CA 12s on the workshop wall provides two AP 12V batteries with a fixed charging spot – always in the same place, always charged when you approach the vehicle.

The CA 12 is also well-suited for mobile use: at 0.52 kg, it easily fits into any toolbox, and the connection cable is designed for power outlet access in garages, carports, or at events. Those who use the PXE 80 system at events or with customers on-site can take the CA 12 as a charging solution without investing significant weight or space.

CA 12 vs. CA 12/18 230/CEE – when is which charger the better choice?

FLEX offers two relevant chargers for its detailing portfolio: the CA 12 230/CEE (purely 12V) and the CA 12/18 230/CEE (12V and 18V, with LCD display). Both charge the same AP 12V battery pack but differ in their area of application and range of functions.

The CA 12 230/CEE is the compact, more affordable choice for anyone working exclusively with the FLEX 12V system – specifically for the PXE 80 12-EC and associated 12V machines. No display, no 18V support, no overkill. Simply reliable, lightweight, wall-mountable. If your setup is limited to the 12V system and you don't own or plan to buy an 18V device, you don't need more.

The CA 12/18 230/CEE offers the flexibility to charge both 12V and 18V batteries, plus an LCD battery diagnostic display and 9A charging current. It is the more sensible investment for anyone looking to expand the FLEX ecosystem – for example, towards 18V orbital polishers like the XFE 2 15 18-EC or the cordless blower BW 18.0-EC.

The CA 12 is the focused, simple solution. The CA 12/18 is the cross-system, flexible one. If you have chosen the PXE 80 as your only FLEX machine and do not plan to buy an 18V device, the CA 12 is the right choice – without extra costs for features that will never be used.

A rule of thumb for the decision: If you don't have an 18V FLEX device in your toolbox today and don't plan to, buy the CA 12. If you already operate an 18V polisher or 18V blower, or plan to, the investment in the CA 12/18 is worthwhile – one charger for both systems is more efficient than two separate devices. If you have both, you might opt for a second CA 12 as an inexpensive, dedicated 12V charging station permanently mounted on the wall.

Buy FLEX CA 12 230/CEE – The Fast Charger in the FLEX 12V PXE System

The FLEX CA 12 230/CEE Fast Charger is available as a single component and is ideal for anyone looking to equip their 12V system with a second charger, set up a charging station in the workshop, or supplement the charger already included in the P-Set 12-22 Q.

The timing of purchase: If you are entering the FLEX PXE 80 system for the first time, the P-Set 12-22 Q is recommended – it includes two batteries and the CA 12 in a bundle. If you are already an owner and need a second charger or another AP 12V battery pack, the CA 12 as a single purchase is the logical addition.

For mobile detailers who work on-site with customers, the CA 12, along with two AP 12V batteries, is the standard package: one battery is running, one is charging. 40–50 minutes of charging time exactly correspond to the typical drying, product application, and waiting times in a standard polishing workflow. The result: no forced breaks, no power shortage in the middle of a job, no improvisation with unfamiliar chargers. Simply a reliable system that works.
